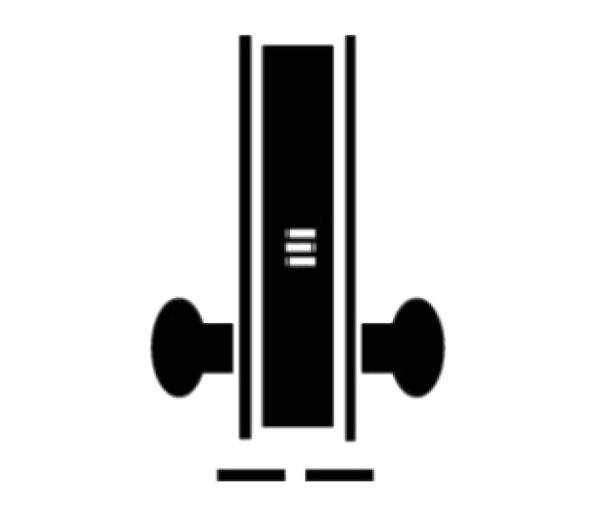

ER-FM801 F01
Passage latch
Latchbolt retracted by knob/ lever from either side at all times.
Inside lever is always free for immediate egress.
Availability: In Stock
|
ER-FM801 F01
Passage latch Latchbolt retracted by knob/ lever from either side at all times. Inside lever is always free for immediate egress.
|
Standards: • Relevant Standards: ANSI/BHMA A156.13 – 2017 for mortise lock & latches • Standard(s) for safety: ANSI/UL 10C, Positive pressur of fire tests of door assemblies CAN/ULC-S104, Standard method for fire test of door assemblies |
|
Function and Application: FM Series locks are ideal for use in office building, airport, school, hospitals and factories, where the finest hardware must also deliver cinsistent, dependable operation and stand up to cinstant use and abuse. Universal lock case – many functions in one case. Field-reversible handing without opening lock case. Locking thumbturn on the inside of door visually shows when the door is locked and unlocked. Independent Lever rotation. |
Specification:
Compliance to ANSI/BHMA A156.13-2005 Mortise Lock Grade 1 Compliance to UL fire rated • Lockcase: Heavy gauge steel, with zinc dichromate finish for corrosion resistance. Deadbolt: One-piece stainless steel, 25mm throw. • Latchbolt: Stainless steel, 2 piece mechanical with anti-friction insert. • 19mm throw. • Auxiliary latchbolt: stainless steel • Strike: stainless steel, ANSI straight lip standard, 4-7/8″ (124mm) X 1-1/4″ (32m) Door thickness: 1-3/4″ (45mm) standard. Optional 1-3/8″ (35mm), 2-1/2″ (64mm) Backset: 2-3/4″ (70mm) |
