Specification:
• Conforms to ANSI / BHMA A156.3 Grade 1 Exit Device Requirement Standard ANSI / UL305
Standard for Safety for Panic Hardware
• UL / cUL Certified for 3 Hours Fire Rate
• UL10B for Neutral Pressure Rated
• UL10C / UBC 7-2 (1997) Codes for Positive Pressure Rated
Availability: In Stock
| Specification: • Conforms to ANSI / BHMA A156.3 Grade 1 Exit Device Requirement Standard ANSI / UL305 Standard for Safety for Panic Hardware • UL / cUL Certified for 3 Hours Fire Rate • UL10B for Neutral Pressure Rated • UL10C / UBC 7-2 (1997) Codes for Positive Pressure Rated |

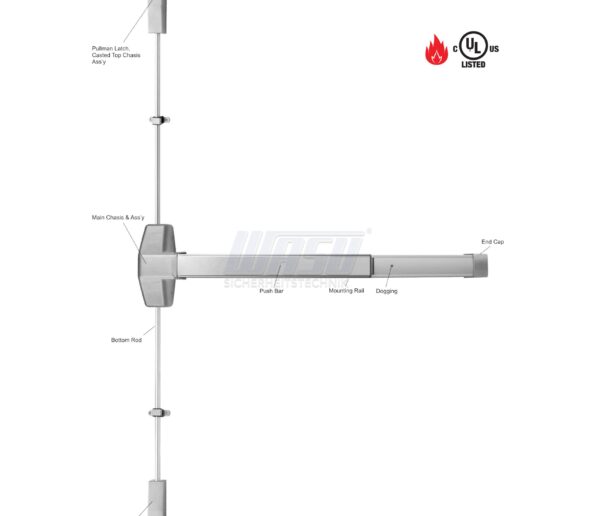

Dimension: • Touch Bar Height from Finished Floor: 40″ (1016mm) to center of touch bar • Touch Bar Projection: Neutral: 3-1/8″ (80mm) • Depressed: 2-9/16″ (65mm) • Head Cover (Center Case): L x W x H: 204mm x 72mm x 71mm • Device Length: 33″ (838mm) for 36″ door width 42″ (1067mm) for 48″ door width • Top and Bottom Latch Case: 5-3/8″ x 1-3/8″ x 1-3/4″ (137mm x 35mm x 46mm) • Top Latch: Stainless Steel Pullman Latch • Bottom Bolt: Stainless Steel with Sliding Bolt • Top and Bottom Rod Length: 84″ Height Doors: Bottom Rod 800mm, Top Rod 915mm 96″ Height Doors: Bottom Rod 800mm, Top Rod 1220mm Fire Rated Vertical Rod Device requires with Auxiliary Fire Spring Bolt |
| For doors: | Thickness: Standard 1-3/4″, may fit with door thickness up to 2″ Width: Standard 36″ or 48″, may fit with door width 30″ ~ 48″ Height: Standard 84″ or 96″, specify when ordering if higher than 96″ (Please specify when ordering for non-standard size doors) |
| Mounting: | Furnished Standard with Wood and Machine Screws Thru-bolts included with fire rated devices |
| Head cover: | Aluminum |
| Chassis: | Steel |
| Rail assembly: | Heavy gauge extruded Aluminum with Stainless Steel on top of touch bar |
| End cap: | Stainless Steel, (Zinc Alloy for slope design end cap, specify when ordering) |
| Hand: | Non-handed, trim reversible |
| Cylinder: | Brass, Rim-Type 5-pin, 2 keys (6-pin Optional) |
| Dogging | Allen Key (equipped on panic rate devices only) |
| Finish | AL: Silver finish 32D: Satin Stainless Steel finish 10B: Oil Rubbed Bronze finish US4: Satin Brass finish G1: Grooved Mounting Rail (Optional) eg: 7000V-AL, 7000FV-32D, 7000FV-G1-32 |
