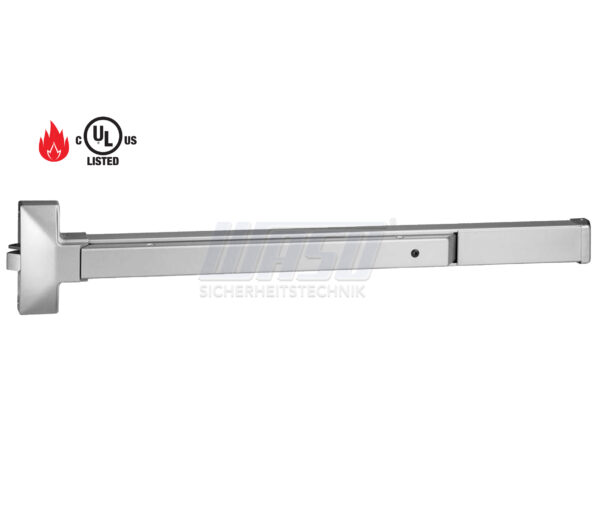

Specification:
• Conforms to ANSI / BHMA A156.3 Grade 1 Exit Device Requirement Standard
ANSI / UL305 Standard for Safety for Panic Hardware
• UL / cUL Certified for 3 Hours Fire Rate
• UL10B for Neutral Pressure Rated
• UL10C / UBC 7-2 (1997) Codes for Positive Pressure Rated
Availability: In Stock
| Specification: • Conforms to ANSI / BHMA A156.3 Grade 1 Exit Device Requirement Standard ANSI / UL305 Standard for Safety for Panic Hardware • UL / cUL Certified for 3 Hours Fire Rate • UL10B for Neutral Pressure Rated • UL10C / UBC 7-2 (1997) Codes for Positive Pressure Rated |
Dimension: • Touch Bar Height from Finished Floor: 41″ (1041mm) to center of touch bar • Touch Bar Projection: Neutral: 2-5/8″ (65mm) • Depressed: 1-7/8″ (47mm) • Head Cover (Center Case): L x W x H: 154 x 55 x 65mm • Device Length: 32″ (813mm) for 36″ door width 44″ (1117mm) for 48″ door width |
| For doors: |
Thickness: Standard 1-3/4″, may fit with door thickness up to 2″ |
| Mounting: | Furnished Standard with Wood and Machine Screws Thru-bolts included with fire rated devices |
| Head cover: | Zinc Alloy |
| Chassis: | Steel |
| Rail assembly: | Steel or Stainless Steel |
| End cap: | Steel or Stainless Steel |
| Latch bolt: | Stainless Steel, 5/8″ (16mm) throw with dead latch (Zinc Alloy for Panic Rate Device |
| Strike: | Stainless Steel ( Zinc Alloy for Panic Rate Device ) Shim Plate included with both Panic and Fire Rated Device for adjustment |
| Hand: | Non-handed, trim reversible |
| Cylinder: | Brass, Rim-Type 5-pin, 2 keys (6-pin Optional) |
| Dogging: | Allen Key (equipped on panic rate devices only) |
| Finish |
AL: Silver finish |
