Specification:
• Conforms to ANSI / BHMA A156.3 (2014) Grade 1 Exit Device Requirement Standard
ANSI / UL305 Standard for Safety for Panic Hardware 2013
California Building Code (2013) Sec. 11B-309.4
Availability: In Stock
| Specification: • Conforms to ANSI / BHMA A156.3 (2014) Grade 1 Exit Device Requirement Standard ANSI / UL305 Standard for Safety for Panic Hardware 2013 California Building Code (2013) Sec. 11B-309.4 |

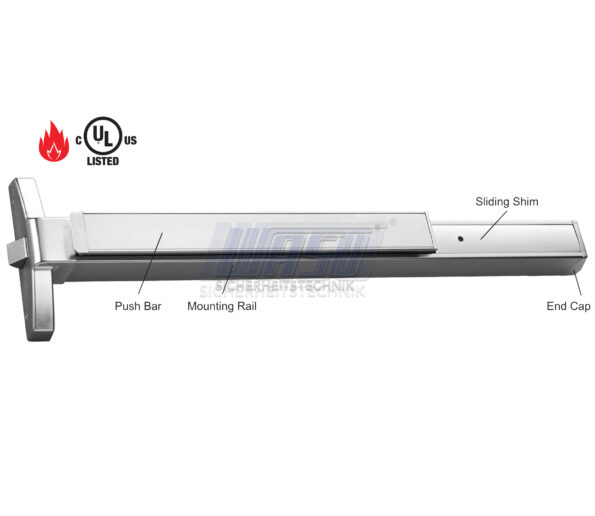

Dimension: • Touch Bar Height from Finished Floor: 41″ (1041mm) to center of touch bar • Touch Bar Projection: Neutral: 3-5/16″ (84mm) • Depressed: 2-19/32″ (66mm) • Head Cover (Center Case): L x W x H: 206 x 76 x 71mm • Device Length: 34-5/8″ (879mm) for 36″ door width 46-5/8″ (1184mm) for 48″ door width |
| For doors: |
Thickness: Standard 1-3/4″, may fit with door thickness up to 2″ |
| Mounting: | Furnished Standard with Wood and Machine Screws Thru-bolts included with fire rated devices |
| Head cover: | Zinc Alloy |
| Chassis: | Aluminum |
| Rail assembly: | Heavy gauge extruded Aluminum with Stainless Steel on top of touch bar |
| End cap: | Zinc alloy |
| Latch bolt: | Stainless Steel, 3/4″ (18mm) throw |
| Strike: | Roller Strike (Zinc Alloy) Shim Plate included with both Panic and Fire Rated Device for adjustment |
| Hand: | Non-handed, trim reversible |
| Cylinder: | Brass, Rim-Type 5-pin, 2 keys (6-pin Optional) |
| Dogging | Allen Key (equipped on panic rate devices only) |
| Alarm | Optional, please specify when ordering |
| Finish |
AL: Silver finish |
