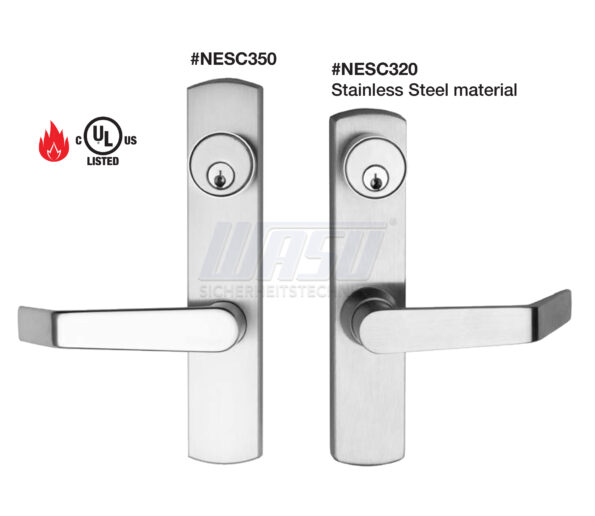

Narrow Stile Escutcheon Lever Trim(NESC350_NESC320)

Construction:

• Clutch freewheeling
• Thru-bolt design
• Hardened steel heavy duty spindle
• Non-handed, easily field reversible with
2 screws only
• Available for Fire/ Panic Rated rim and vertical
rod exit devices
• NESC550 series fit and cover 2-1/8″ cutout

Door Thickness:

• Standard: 1-3/4″ (45mm)
• Please specify when ordering for non-standard
size door

Function:

NESC-05 Entrance
NESC-08 Storeroom
NESC-00 Passage
NESC-00D Dummy
Key locks & unlocks lever
Key retracts device latchbolt
Entrance by trim, always active
Pull when device dogged

Keyway:

• Standard 5-pin Schlage “C” keyway
• Please specify if require different keyway or 6-pin
cylinder

Finish:

• 26D: Satin Chrome
• 32D: Satin Nickel
• DB: Dark Bronze
• Eg: Model# – Function – Finish NESC350-05-SS
• NESC550PF-08-26D
