Lever Trim series:
300 series: with Clutch feature
500/ 600 series: with Non-Clutch feature
LHL350/ LHL550/ LHL650 Entry Lever Trim
LHL358/ LHL580/ LHL680 Storeroom Lever Trim
LHL300/ LHL500/ LHL600 Passage Lever Trim
LHL300D/ LHL500D/ LHL600D Dummy Lever Trim
Availability: In Stock

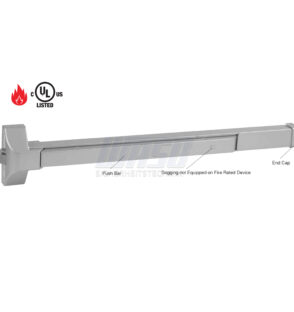

| Specification: • Conforms to ANSI / BHMA A156.3 Grade 1 Exit Device Requirement Standard ANSI / UL305 Standard for Safety for Panic Hardware • UL / cUL Certified for 3 Hours Fire Rate • UL10B for Neutral Pressure Rated • UL10C / UBC 7-2 (1997) Codes for Positive Pressure Rated |
Dimension: • Touch Bar Height from Finished Floor: 40″ ( 1016mm ) to center of touch bar • Touch Bar Projection: Neutral: 2-5/8″ (66mm) • Depressed: 1-7/8″ (47mm) • Head Cover (Center Case): L x W x H: 154mm x 44mm x 64mm • Head Cover (Center Case) (B-Type): L x W x H: 154mm x 59mm x 64mm • Device Length: 33″ (838mm) for 36″ door width 42″ (1067mm) for 48″ door width • Top and Bottom Latch Case: 4-3/4″ x 1-1/8″ x 1-3/4″ (121mm x 29mm x 45mm) • Top and Bottom Rod Length: 84″ Height Doors: Bottom Rod 850mm, Top Rod 950mm 96″ Height Doors: Bottom Rod 850mm, Top Rod 1250mm Vertical Rods: 1/2″ (13mm) round tubing |
DoggingAllen Key (equipped on panic rate devices only)
| For doors: | For doors: Thickness: Standard 1-3/4″, may fit with door thickness up to 2″ Width: Standard 36″ or 48″, may fit with door width 30″ ~ 48″ Height: Standard 84″ or 96″, specify when ordering if higher than 96″ (Please specify when ordering for non-standard size doors) |
| Mounting: | Furnished Standard with Wood and Machine Screws Thru-bolts included with fire rated devices |
| Head cover: | Zinc Alloy or Stainless Steel |
| Chassis: | Steel |
| Rail assembly: | Steel or Stainless Steel |
| End cap: | Steel or Stainless Steel |
| Hand: | Non-handed, trim reversible |
| Cylinder: | Brass, Rim-Type 5-pin, 2 keys (6-pin Optional) |
| Dogging | Allen Key (equipped on panic rate devices only) |
| B-Type Cover: | Optional, please see below for enlarged head cover dimension |
| Finish | AL: Silver finish 32D: Satin Stainless Steel finish 10B: Oil Rubbed Bronze finish eg: 3000F-AL, 3000F-SS, 3000FV-SS |
