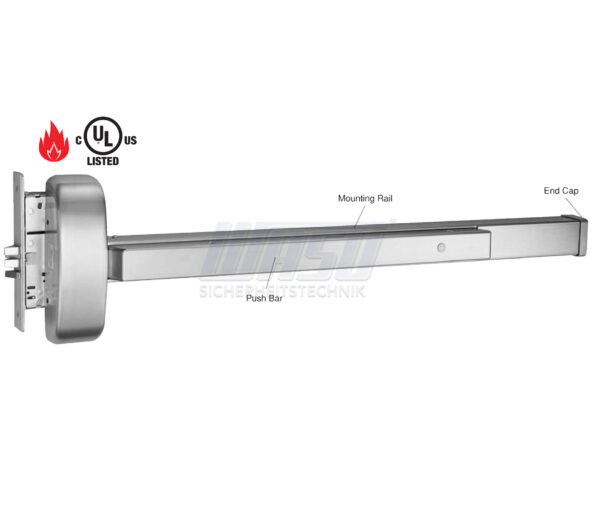

Fire Rated Mortise Exit Device(9000FMTS)

(0 customer review)

Specification:
• Conforms to ANSI / BHMA A156.3 Grade 1 Exit Device Requirement Standard
ANSI / UL305 Standard for Safety for Panic Hardware
• UL / cUL Certified for 3 Hours Fire Rate
• UL10B for Neutral Pressure Rated
• UL10C / UBC 7-2 (1997) Codes for Positive Pressure Rated

Availability: In Stock

SKU:9000FMTSCategory:
Specification:
• Conforms to ANSI / BHMA A156.3 Grade 1 Exit Device Requirement Standard
ANSI / UL305 Standard for Safety for Panic Hardware
• UL / cUL Certified for 3 Hours Fire Rate
• UL10B for Neutral Pressure Rated
• UL10C / UBC 7-2 (1997) Codes for Positive Pressure Rated		 Dimension:
• Touch Bar Height from
Finished Floor: 41″ (1041mm)
to center of touch bar
• Touch Bar Projection:
Neutral: 3-1/8″ (80mm)
• Depressed: 2-9/16″ (65mm)
• Head Cover (Center Case):
L x W x H: 206 x 76 x 71mm
• Device Length:
32″ (813mm) for 36″ door width
44″ (1117mm) for 48″ door width
• ESC9000F: L x W: 203 x 51mm
For doors: Thickness: Minimum 1-3/4″, may fit with door thickness up to 2″
Width: Standard 36″ or 48″, may fit with door width 30″ ~ 48″
(Please specify when ordering for non-standard size doors)
Mounting: Furnished Standard with Machine Screws Thru-bolts included with fire rated devices
Head cover: Stainless Steel
Chassis: Steel
Rail assembly:  Stainless Steel
End cap:  Stainless Steel
Latch bolt: Stainless Steel, 3/4″ (18mm) throw
Mortise: ANSI Grade 1 mortise lockcase with 2-3/4″ backset for 1-3/4″ (45mm)
thick door Fits door prepared for ANSI Standard A115.1, reversible
Hand: Handed, please specify LHR or RHR when ordering, trim reversible
Cylinder: Brass, Rim-Type 5-pin, 2 keys (6-pin Optional)
Finish 32D: Satin Stainless Steel finish
eg: 9000FMTS-SS
