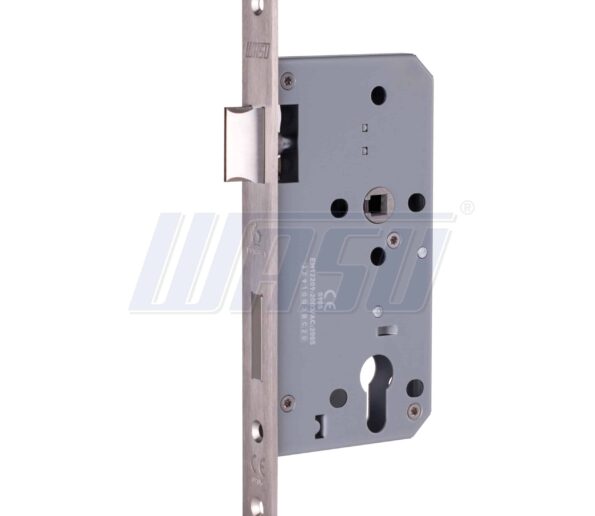

EURO PROFILE MORTISE SASH LOCK

Application:

 For doors hinged on the left or right and requiring
key and lever handle operation.

Operation:

• European style casing with 72mm centres which
accommodates most euro profile cylinders.
• Key and handle operation from both sides of the
door.
• Latchbolt operated by key.
• Double throw – 19mm deadbolt throw when key is
turned twice.
• Easily reversible latch bolt.
• Pierced to accept bolt through furniture and
security rose

Specification:

• Reference: 5520-55
• Case Size: 165mm
• Backset: 55mm
• Centres: 72mm
• Case: Galvanised Zinc
• Outer Forend: See finishes table
• Striking Plate: Finished to match outer forend
• Deadbolt: Steel electro plated to SS finish
• Latch Bolt: Stainless steel
• Follower: Stainless steel, 8mm
• Cylinder Type: Euro profile (not supplied)

Features:

Modular case range.
• Easily reversible stainless steel latch bolt

Finishes:

 SS – Stainless Steel
• PSS – Polished Stainless Steel
• PVD – Physical Vapor Deposition
• SSAB – Antique Bronze
