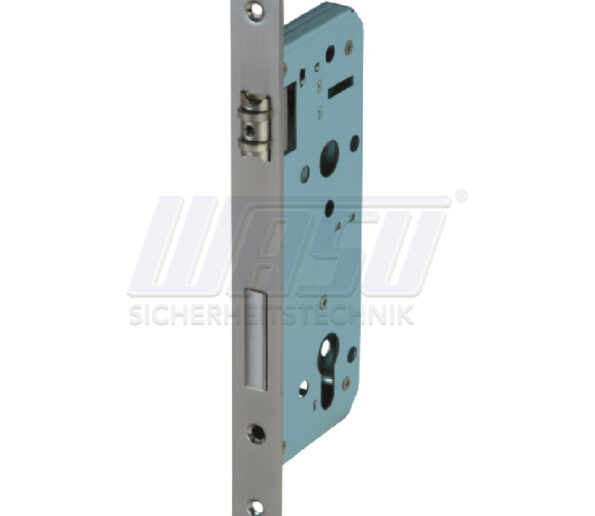

EURO PROFILE MORTISE ROLLER LOCK (8545)

Application:

For doors hinged on the left or right and requiring key and lever handle operation.

Operation:

European DIN style casing with 85mm centres which accommodates most euro profile cylinders.

Key and handle operation from both sides of the door.

Round latchbolt operated by key.

Double throw – 22mm deadbolt throw when key is turned twice.

Pierced to accept bolt through furniture and security rose.

Specification:

 Reference: 5521R-45
• Case Size: 163mm
• Backset: 45mm
• Centres: 85mm
• Case: Galvanised Zinc
• Outer Forend: See finishes table
• Striking Plate: Finished to match outer forend
• Deadbolt: Steel electro plated to SS finish
• Latch Bolt: Stainless steel
• Follower: Stainless steel, 8mm
• Cylinder Type: Euro profile (not supplied)

Features:

Modular case range.

Easily reversible stainless steel latch bolt.

Finishes:

SS – Stainless Steel

PSS – Polished Stainless Steel

PVD – Physical Vapor Deposition

SSAB – Antique Bronze
