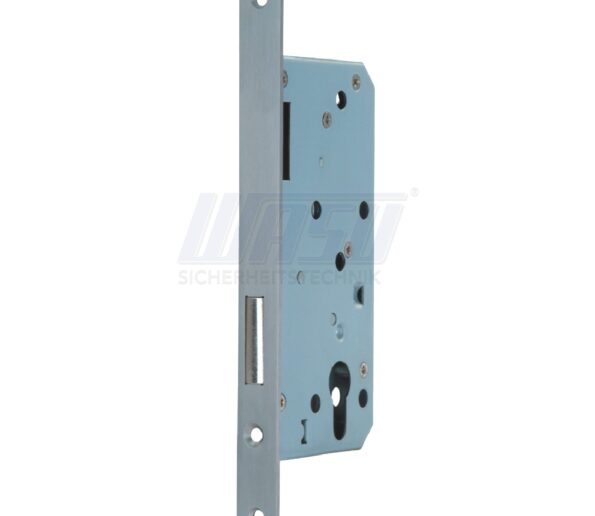

EURO PROFILE MORTISE LOCK (7255-DB)

Application:

• For doors hinged on the left or right and requiring
key and lever handle operation.

Operation:

• Double throw – 22mm deadbolt throw when key
is turned twice.
• Pierced to accept bolt through furniture and
security rose.

Specification:

• Reference: 7255-DB
• Case Size: 163mm
• Backset: 55mm
• Centres: 72mm
• Case: Galvanised Zinc
• Outer Forend: See finishes table
• Striking Plate: Finished to match outer forend
• Deadbolt: Steel electro plated to SS finish
• Latch Bolt: Stainless steel
• Follower: Stainless steel, 8mm
• Cylinder Type: Euro profile (not supplied)

Features:

• Modular case range.
• Easily reversible stainless steel latch bolt.

Finishes:

• SS – Stainless Steel
• PSS – Polished Stainless Steel
• PVD – Physical Vapor Deposition
• SSAB – Antique Bronze
