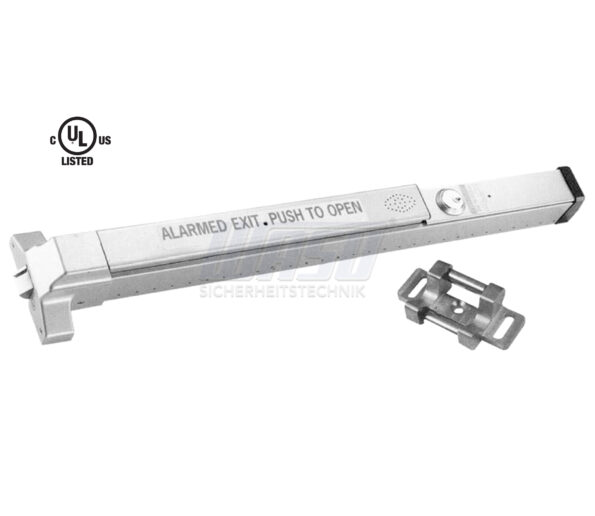

ALARMED EXIT DEVICE MODEL 24

Lock features:

• Easy to install, surface-mounted

• Made of rugged high-strength steel with pressure cast cover

• Corrosion resistant

• Fine architectural design available in aluminum or duranodic • Automatic re-latching

 • Bardogging

• For 36″-48″ door width

 • Non-handed

Alarm features:

• Loud electronic siren & bright red LED signal

 • Low battery alert

 • Powered by two 9-volt alkaline batteries for longer life

• Key bypass for authorized personne

Prevent pilfering!

Secure emergency exits safely and legally to prevent pilferage and unwanted door use with the “24” series alarmed panic devices. The Model 24 alarmed lock provides full time locking of emergency exit doors while complying with standard safety, fire and building department codes. It provides maximum day and night security and is powerful deterrent against pilferage – from within or without – and always remains panic proof.

Specifications:

• Weight: 11 lbs. (Shipping weight 13 lbs.)

 • Length: 33 5/8″ – 45 5/8″ • Width: 3 1/2″

• Depth: 6 1/8″

• Latch: Deadlatch with deadlocking mechanism • Finish: Silver, Duranodic

• Cylinder: Rim type (for outside key control)

Special features:

Our EXCLUSIVE COMBINATION STRIKE makes the need for specifying or stocking single or double door applications unnecessary. The lock is non-handed – you only need to specify door width. The SAFETY WARNING SIGN on the device includes braille lettering to aid the visually impaired. The 3.5″ x 9″ ADHESIVE DOOR WARNING SIGN can be applied to any clean, dry surface.
